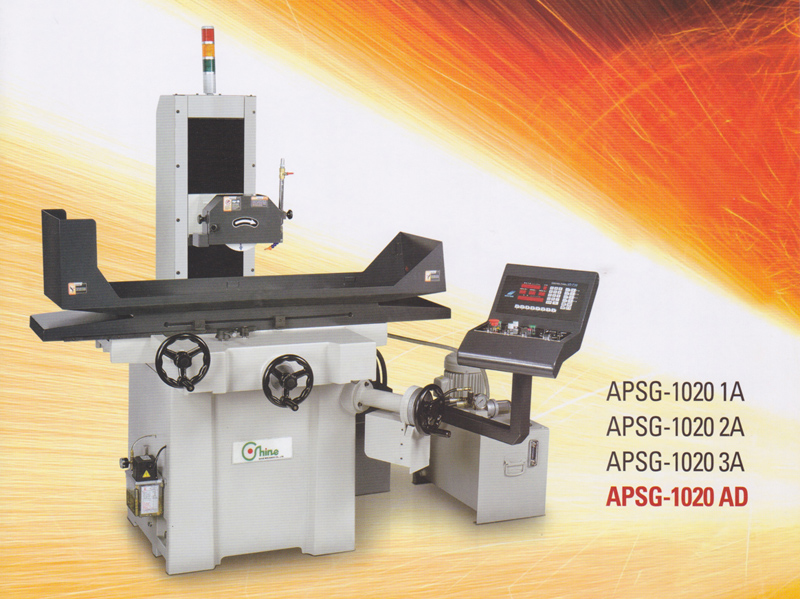

Machine Features:-
- Easy operation needs no calculation
- Rough and fine feed two phrase processing ensure high precision.
- Vertical axis is constantly displayed for easy monitoring, can arbitrarily set zero position.
- Zero set and zero return are available for easy handling, just press the return key to return to original starting point.
- Even if the vertical head is moved or modified from the current position, original feed setting won’t be affected
- Automatic transverse and deep plunge cycles available

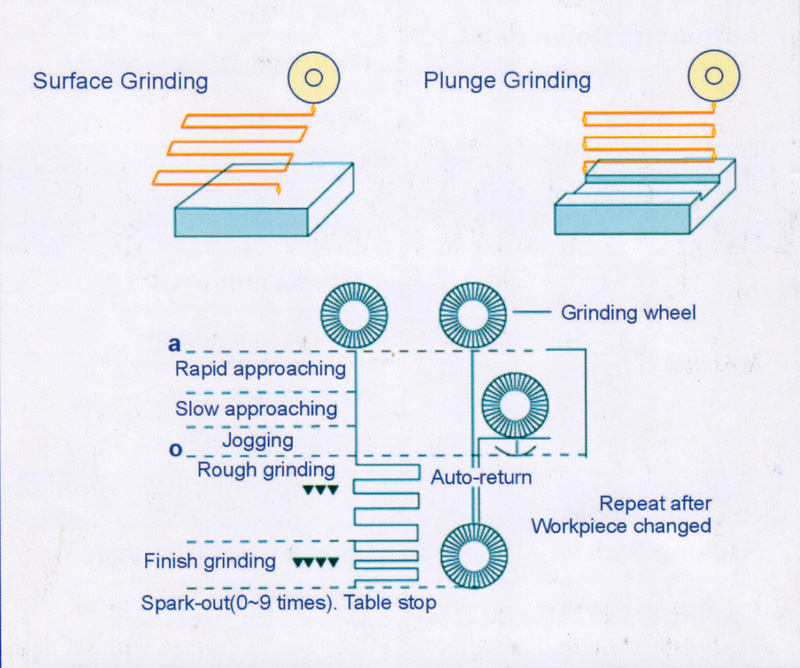

- Two plunge mode feed selections:
- Left side feed
- Dual side feed
Specifications
| General Capacity | Table Size: 200 x 508 mm Max. grinding length: 510mm Max. grinding width: 210mm Distance from Table Surface to Spindle Center: 485mm |
| Longitudinal movement | Manual travel: 530mm Hydraulic travel: 508mm Table speed (Approx): 1 – 25 M/min |
| Cross Feed Movement | Manual Travel: 230mm Hydraulic travel: 230mm Continuous Feed (Approx): 1200mm/min Handfeed per. rev.: 0.02mm Handfeed per. gra.: 5mm Micro feed per rev. (opt): 0.001mm Intermittent cross feed: 0.15 – 7.5 |
| Vertical Down Feed | Handfeed per. rev.: 0.005mm Handfeed per. gra.: 1mm Rapid Feed: 220mm / min Feed by MPG (opt): (x1) 0.001 (x10) 0.01 (x100) 0.1mm |
| Automatic Down Feed | Feed Rate (Coarse / Fine): 0.001 ~ 0.099mm Total stock removal: 0.001 ~ 999.999mm Fine Feed Stock Removal: 0.001mm Spark out: 0 ~ 9 passes |
| Grinding Wheel | Wheel Size (Dia x Width x Bore): 180 x 13 x 31.75mm Spindle Speed: 50 Hz / 3000 rpm 60 Hz / 3600 rpm |
| Motors | Spindle Motor (opt): 2HP Cross Feed Motor: 40W Hydraulic Motor: 1 hp x 3p Elevated motor: 21.6 kg-cm |
| Weight | 950kgs |
| Packing Size | L x W x H: 1900 x 1500 x 2100 mm |
