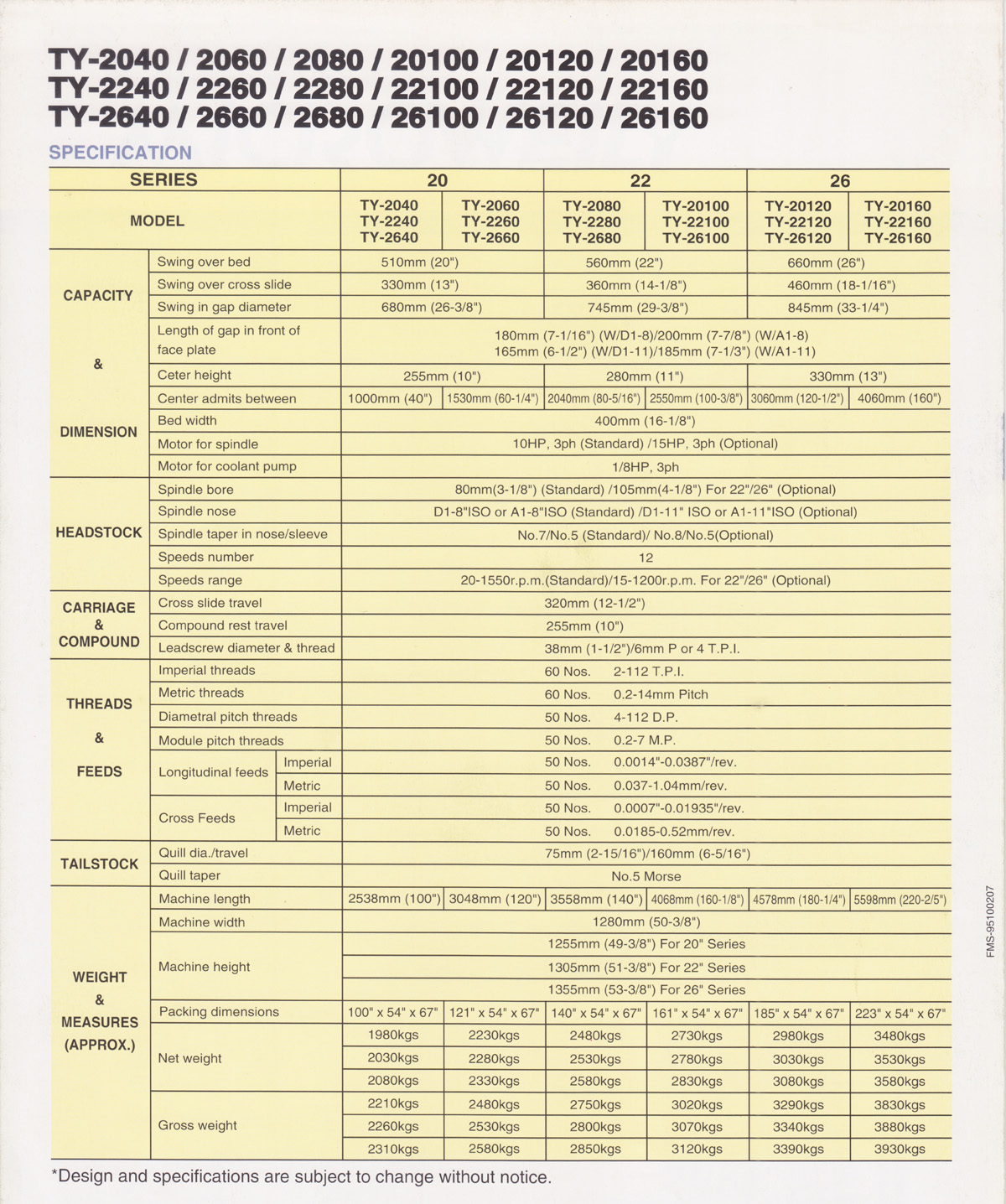

Specifications
| DESCRIPTION | UNITS |
TY-2080 / 2280 / 2680
|
TY-20100 / 22100 / 26100
|
||
|
CAPACITY
& DIMENSIONS |
Swing over bed
|
mm (in) |
560 (22)
|
||
|
Swing over cross slide
|
mm (in) |
360 (14-1/8)
|
|||
|
Swing in gap
|
mm (in) |
745 (29-3/8)
|
|||
|
Length of gap in front of
face plate |
mm (in) |
180 (7-1/16) (W/D 1-8) / 200 (7-7/8″) (W/A 1-8)
165 (6-1/2) (W/D 1-11) / 185 (7-1/3) (W/A 1-11) |
|||
|
Center height
|
mm (in) |
280 (11)
|
|||
|
Distance between centers
|
mm (in) |
2040 (80-5/16)
|
2550 (100-3/8)
|
||
|
Bed width
|
mm (in) |
400 (16-1/8)
|
|||
|
Motor for main spindle
|
hp |
10HP 3ph (Standard) / 15 HP, 3ph (Optional)
|
|||
|
Motor for coolant pump
|
hp |
1/8HP, 3ph
|
|||
|
HEADSTOCK
|
Spindle bore
|
mm (in) |
80(3-1/8) (Standard) / 105 (4-1/8) for 22″/26″ (Optional)
|
||
|
Spindle nose
|
D1-8″ ISO or A1-8″ ISO (Standard) / D1-11″ ISO or A-11″ ISO (Optional)
|
||||
|
Spindle taper in nose / sleeve
|
No.7 / No.5 (Standard) / No.8 / No.5 (Optional)
|
||||
|
Speeds number
|
12
|
||||
|
Speed range
|
rpm |
20-1550 (Standard) / 15 – 1200 , For 22″ /26″ (Optional)
|
|||
|
CARRIAGE
& COMPOUND |
Cross slide width / travel
|
mm (in) | 320 (12-1/2) | ||
|
Compound rest width / travel
|
mm (in) | 255 (10) | |||
|
Leadscrew diameter & thread
|
mm (in) | 38 (1-1/2) & 6mm pitch (4 T.P.I). | |||
|
THREADS
& FEEDS |
Imperial threads
|
60 Nos. 2-112 T.P.I.
|
|||
|
Metric threads
|
mm |
60 Nos. 0.2-14 Pitch
|
|||
|
Diametral pitch threads
|
50 Nos 4-112 D.P.
|
||||
|
Module pitch threads
|
50 Nos. 0.2-7 M.P.
|
||||
| Cross feeds |
Imperial
|
in/rev |
50 Nos. 0.0007-0.01935
|
||
| Metric | mm/rev | 50 Nos. 0.0185-0.52 | |||
| Longitudinal feeds | Imperial | in/rev | 50 Nos. 0.0014-0.0387 | ||
| Metric | mm/rev | 50 Nos. 0.037-1.04 | |||
|
TAILSTOCK
|
Quill dia./ travel
|
mm (in) | 75 (2 15/16) / 160 (6-5/16) | ||
|
Quill taper
|
No.5 Morse
|
||||
|
WEIGHT
&
MEASURES (APPROX.) |
Machine length | mm (in) |
3558 (140)
|
4068 (160 -1/8)
|
|
| Machine width | mm (in) |
1280 (50-3/8)
|
|||
| Machine height | mm (in) |
1505 (51-3/8)
|
|||
| Packing dimensions | in |
140 z 54 z 67
|
161 x 54 x 67
|
||
| Net weight | kg |
2480 / 2530 / 2580
|
2730 / 2780 / 2830
|
||
| Gross weight | kg |
2750 / 2800 / 2850
|
3020 / 3070 / 3120
|
||
